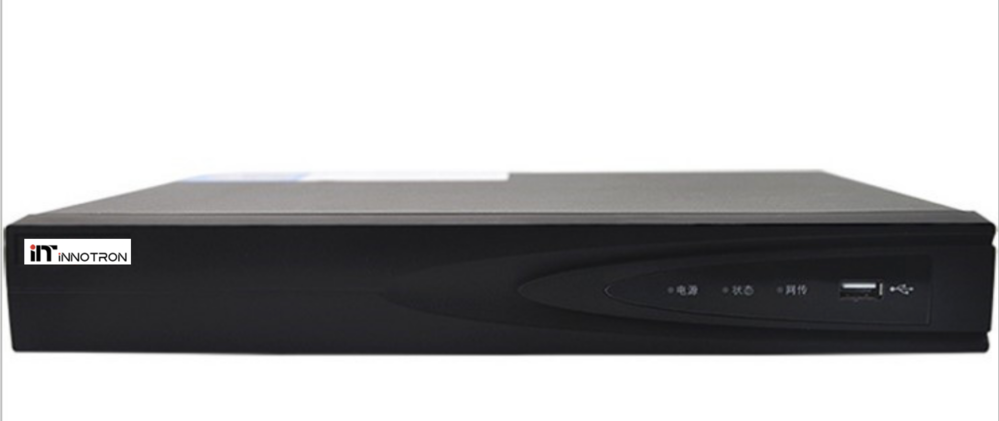

NVR-8110


Model Name

NVR8110

CPU Support

Intel® 6th & 7th generation Core™ processors family

Main Memory

4 x 288-pin dual channel long DIMMs, support DDR4 2400MH up to 64GB, non-ECC, un-buffered system memory

Platform Control Hub

Intel® Q170 Chipset

I/O Interface-Front

Power on/off switch HDD access/power status LEDs 1 x USB 2.0 ports

I/O Interface-Rear

6 x USB 3.0 x COM1 (RS232/422/485) DB9 male connector 1 x PS/2 port 2 x RJ45 connector with Intel® I219LM and i211-AT GbE 1 x Audio Jack , 2 x HDMI 1.4 connector (resolution up to 4K@24Hz) 1 x DVI-I (resolution up to 1920 x 1200)

Expansion Slot

1 x M.2 slot (M-Key 22 x 42mm) 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1 1 x TPM interface

Power Input

300W single industrial-grade power supply AC 100V to 240V

Dimensions

553.4mm (D) x 457mm (W) x 94.9mm (H)

Construction

 Steel chassis

Environment

Operating temperature

- Ambient with air flow: 0°C ~ 45°C Storage temperature: -20°C ~ 70°C Relative humidity: 10% ~ 90% (non-condensing)

·       NVR with 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1 slots available

·       Support Intel® 6th & 7th generation Core™ processors family

·       8 x 3.5" hot-swappable HDD trays

·       Triple display by 2 x HDMI + 1 x DVI-I

·       2 x Intel® gigabit Ethernet/support Intel® AMT 12.0 for remote management

·       1 x M.2 slot, support SATA 3.0
