Model Name
|

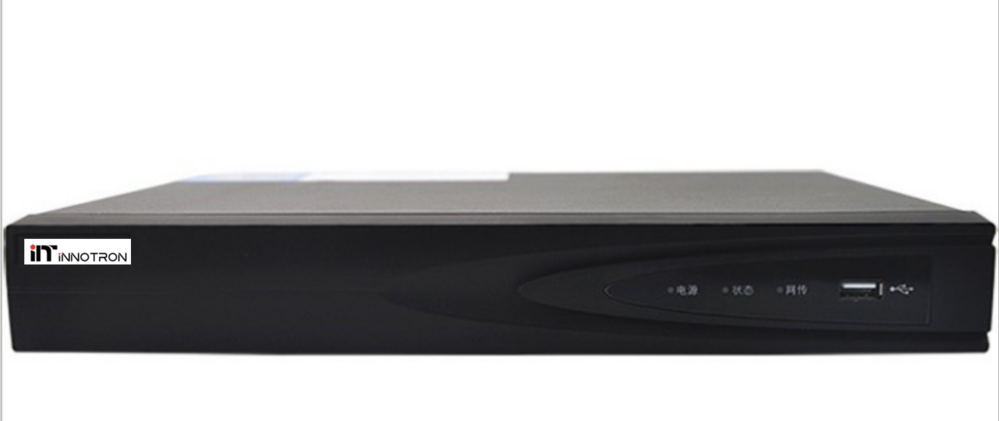

NVR8210
|
|
CPU Support
|
Intel® 8th & 9 th generation Core™ processors family
|
|
Main Memory
|
4 x 288-pin dual channel long DIMMs,
support DDR4 2666/2400MH up to 64GB, non-ECC, un-buffered system memory
|
|
Platform Control Hub
|
Intel® Q370 Chipset
|
|
I/O Interface-Front
|
Power on/off switch HDD access/power
status LEDs 1 x USB 2.0 ports
|
|
I/O Interface-Rear
|
6 x USB 3.1 x COM1 (RS232/422/485) DB9
male connector 1 x PS/2 port 2 x RJ45 connector with Intel® I219LM and
i211-AT GbE 1 x Audio Jack , 2 x HDMI 1.4 connector (resolution up to
4K@24Hz) 1 x DVI-I (resolution up to 1920 x 1200)
|
|
Expansion Slot
|
1 x M.2 slot (M-Key 22 x 42mm) 1 x PCIe
x16, 1 x PCIe x4, 1 x PCIe x1 1 x TPM interface
|
|
Power Input
|
300W single industrial-grade power supply
AC 100V to 240V
|
|
Dimensions
|
553.4mm (D) x 457mm (W) x 94.9mm (H)
|
|
Construction
|
Steel chassis
|
|
Environment
|
Operating temperature
- Ambient with air flow: 0°C ~ 45°C Storage temperature: -20°C ~
70°C Relative humidity: 10% ~ 90% (non-condensing)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
· NVR with 1 x PCIe x16, 1 x
PCIe x4, 1 x PCIe x1 slots available
· Support Intel® 8th & 9 th generation Core™ processors family
· 8 x 3.5" hot-swappable HDD
trays
· Triple display by 2 x HDMI + 1
x DVI-I
· 2 x Intel® gigabit
Ethernet/support Intel® AMT 12.0 for remote management
· 1 x M.2 slot, support SATA 3.0
