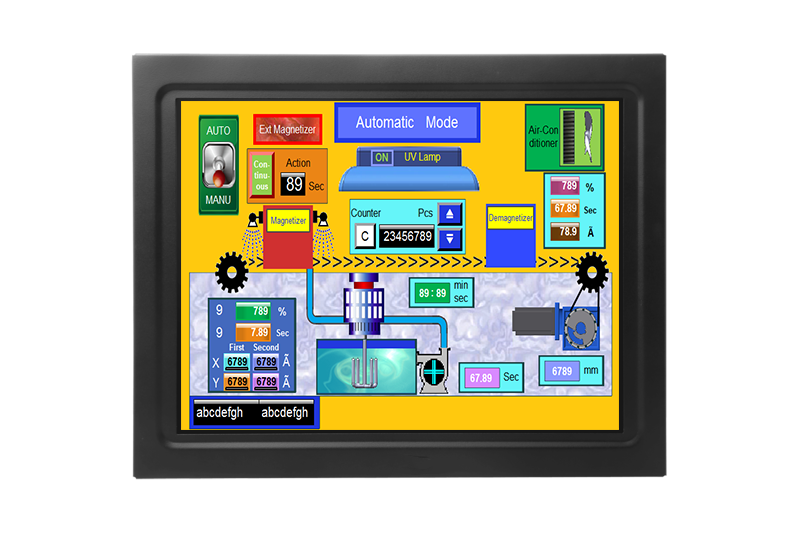

• TPM-3215 / TPM-3115

TPM-3215 / TPM-3115


Model TPM-3215P TPM-3215R
Display Panel Size 15” LCD Panel
Resolution 1024 x 768 (XGA)
Viewing Angle 80 x 80 (H) x 80 x 80 (V)
Brightness 250 (cd/m2)
Color Support 16.7 M
Contrast Ratio 600:1
Response Time 8 (msec)
Touchscreen Touchscreen Type Projected Capacitive 5-Wire Resistive
Surface Hardness 7 Mohs 3 Mohs
Durability - 10 million touches
Transparency 90% (±3%) 80% (±3%)
I/O Interface Video Interface 1 VGA
Touch Interface Projected Capacitive (for USB only) / 5-Wire Resistive (for USB and RS-232)
OSD Control Function Key 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power Power Connector Pheonix Terminal Block, 2 pins
Power Input 12-24 V DC power input, single power source (Typical)
Power Consumption 10.1 W
Environment Operating Temperature 0~50° C (32~122° F)
Storage Temperature -30~70° C (-22~158° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General Ingress Protection IP54
Dimensions
(W x H x D)
364.6 x 290.6 x 36 mm (14.35” x 11.44” x 1.41”)
Weight 3.7kg (8.14 lb)
Operating System Windows CE/XP/7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu
  • 15” XGA LCD Panel up to 1024 x 768 Resolution
  • 5-wire Resistive / Projected Capacitive Touch Technology
  • 12-24 V DC Power Input with Terminal Block
  • Combined with RS-232 and USB Touch Interfaces
  • -20~60° C Operating Temperature
  • Panel and VESA Mounting
  • Embedded HMI Display System
  • Factory / Manufacturing Automation
  • ATM / Self-service / Kiosk Applications
  • Vending / Ticketing Machines
