• TPM-3218

TPM-3218

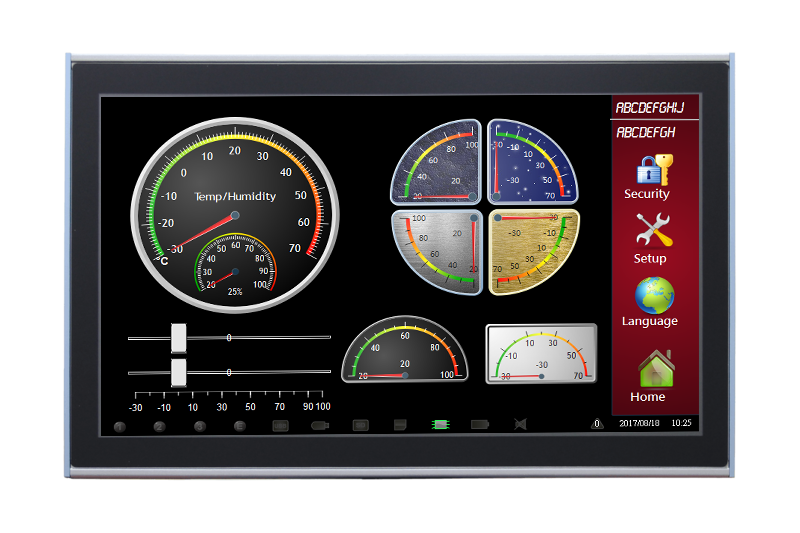

Model TPM-3218
Display Panel Size 18.5” LED LCD Panel
Resolution 1366 x 768 (HD)
Viewing Angle 85 x 85 (H), 80 x 80 (V)
Brightness 250 (cd/m2)
Color Support 16.7 M
Contrast Ratio 1000:1
Response Time 5 (msec)
Touchscreen Touchscreen Type Projected Capacitive multi-touch screen
Surface Hardness 7 Mohs
Transparency 90% (±3%)
I/O Interface Video Interface 1 VGA, 1 DVI-D, 1 HDMI
Touch Interface 1 USB
Speaker Out Audio Jack, with 2 W Amplifer
OSD Control Function Key 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power Power Connector DC Jack
Power Input 12 V DC power input
Power Consumption (Typical) 9 W
Power Adapter 40 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5A MAX output
Environment Operating Temperature 0~50° C (32~122° F)
Storage Temperature -30~70° C (-22~158° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General Ingress Protection IP54
Dimensions (L x W x H) 455 x 284.2 x 42.8 mm (17.91" x 11.19" x 1.69")
Weight 4.5 kg (9.9 lb)
Operating System Single-touch: Windows XP
Multi-touch: Windows 7/8.1/10, WES7-P, WE8S
  • 18.5” LED LCD Panel up to 1366 x 768 (FHD) Resolution
  • LED Backlight Provides 20~30% Power Savings
  • Projected Capacitive Multi-touch Screen
  • Windows 7 / 8 / 10 Gestures Support
  • 7 Mohs Screen Hardness
  • 90% Transparency Provides Clear Image
  • Industrial HMI Display Systems
  • ATM / Self-service / Kiosk Applications
  • Vending / Ticketing Machines
  • Point-of-information Terminals
  • Factory / Machine Automation
