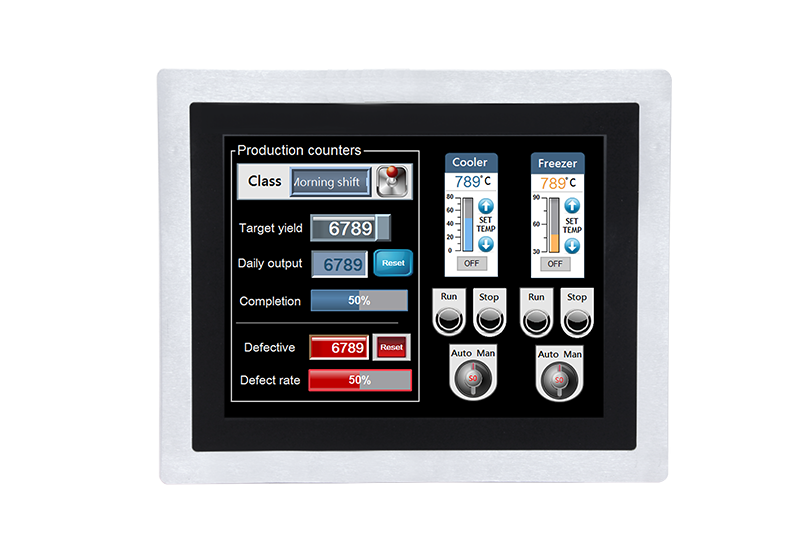

• TPM-3317

TPM-3317


Model TPM-3312P TPM-3312R
Display Panel Size 12.1” LED LCD Panel
Resolution 1024 x 768 (XGA)
Viewing Angle 80 x 80 (H) x 65 x 75 (V)
Brightness 450 (cd/m2)
Color Support 16.2M / 262 K colors
Contrast Ratio 700:1
Response Time 35 (msec)
Touchscreen Touchscreen Type Projected Capacitive 5-Wire Resistive
Surface Hardness 7 Mohs 3 Mohs
Durability - 10 million touches
Transparency 90% (±3%) 80% (±3%)
I/O Interface Video Interface 1 VGA
Touch Interface Projected Capacitive (for USB only) / 5-Wire Resistive (for USB and RS-232)
OSD Control Function Key 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power Power Connector Pheonix Terminal Block, 2 pins
Power Input 12-24V DC input, single power source
Power Consumption 22 W
Environment Operating Temperature -20~60° C (-4~140° F)
Storage Temperature -30~70° C (-22~158° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General Ingress Protection IP65, Stainless steel front cover
Dimensions (W x H x D) 411.4 x 337.5 x 40.0 mm (16.19”x 13.28” x 1.57”)
Weight 6.15kg (13.6 lb)
Operating System Windows 7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu
  • IP65 Protected Stainless Flat Panel Design
  • Wide Range Operation Temperature (-20~60C)
  • Wide Range DC input with Lockable Terminal Block, (12~24V DC)
  • Panel and VESA mount
  • CNC Machines
  • Embedded HMI Display System
  • Factory / Manufacturing Automation
  • Vending / Ticketing Machines
